OG-08 13A BT E-LOCK

OG-08 13A BT E-Lock

User Manual

NOTE

Thank you for choosing our E-lock product. It will protect the security of your assets in transit perfectly, as well as save the cost of disposable seals. Please read this manual carefully before start. Hope you have a pleasant experience.

1、 Specifications

l  Size：111mm×82mm×42mm  (L× W × H)

l  Lock rope：5mm , head : 7mm (diameter) 750px (length)

l  Weight：about 650g

l  Lithium battery：10AH

l  Working current：40mA

l         BLE frequency：2.4GHz

l  Standby time：about 30days （upload data every 15 mins）

l  Protection rate：IP67

l  Lifetime：Over 3-5 years

2、 Use of environmental conditions

l  Working temperature：-20℃～+60℃

l  Relative Humidity：≤90％

l  Air pressure：86KPa～106KPa

3、 Main features

l  Multiply location: GPS and LBS location together

l  Wireless control：Electronic lock can be controlled by the platform or the APP

l  Real-time monitoring: Upload the status and position in real-time to the cloud

l  Encrypt communication: Data transfer in encryption

l  Auto-alarm: Real-time status detecting and alarming when the lock pole / lock body is damaged

l  Data storage: Store the operation, location, status or alarm data while network is not available and transmit data when network is available.

l  Clear indicator: Display the status and battery level by LED

l  High reliability: Full metal design, sturdy and durable. Design of high strength lock and lock lever

l  Reusable: Recycling , no disposable material, environment protection

l  Power persistence：Large capacity rechargeable lithium battery and low power circuit design to ensure long outdoor use

l  Outdoor design：Totally waterproofed, anti salt spray and shockproof design, adapt to the outdoor environment

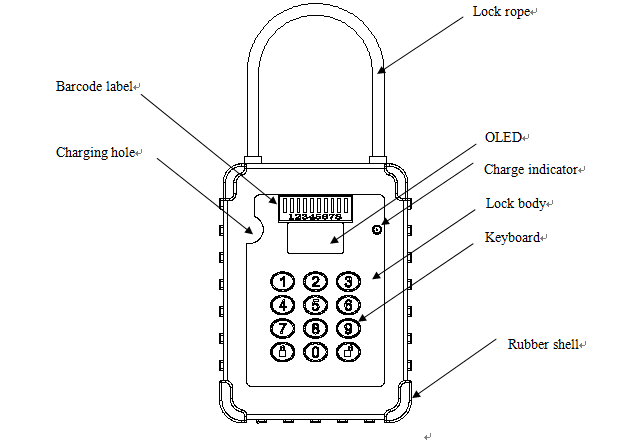

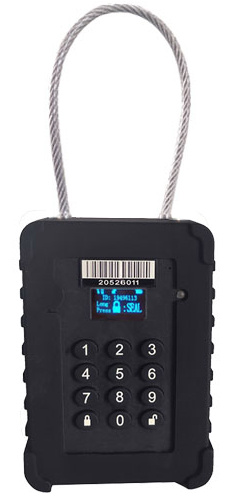

4、 Lock body description

5、 Specifications:

l  GSM/GPRS Communication : GSM and GPRS

l  GPS for tracking : Y

l  Mechanism for lock open : BLE / OTP

l  Lock open/tamper alert : Yes

l  Internal Battery : Lithium ion battery

l  Back-up capacity : 1 Month rechargeable battery

l  Ingress Protection : IP67

l  Shock, Vibration : yes

l  Certifications :  CE

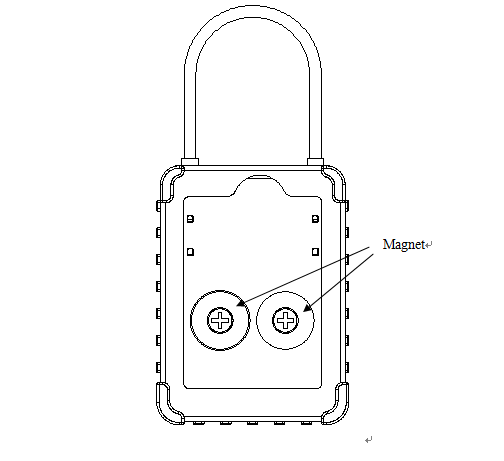

l  Fixing : Magnet

l  Materials : Die - cast zinc body/Steel, stainless steel rope, LED indicators

l  Charging : DC 3.5 plug

l  Mobile app : Support available API/Protocol interface

6、 Important Notes and warnings

1)    Try not to use the E-lock in extreme environment as that with extremely high or low temperature, high humidity or corrosion. Lithium battery capacity and function can go down dramatically when its used beyond the temperature range -20℃ to 60℃.

2)    Working voltage of E-lock is 3.7V-4.2V, when the voltage is lower than 3.7V, it can still work. But to avoid battery drains during the trip, when locking at this time, it will prompt: E-lock failed with low voltage. Instant recharging is needed.

3)    If the operation is overtime when unsealing, and it is confirmed that it is because battery is depleted, then charge the lock with a portable battery. The E-lock can work normally after about 5 minutes’ charging. And please recharge the E-lock with charger after unsealed.

4)    As the battery capacity is large and the battery charging current reaches 2A, it is necessary to use the charger and charging line of the manufacturer.

7、 Charging description:

l  Normal charging: the Elock uses a super large lithium polymer battery with a working voltage of 3.7-4.2VDC.The charge and discharge times are about 500 times. The charging time is about 6-7 hours. Please recharge in time when the E-lock prompts low voltage.

l  Keep the electronic lock open when charging, otherwise it will not be fully charged
